    UL導電泡棉
    型號:
    條碼:
    規格
    產品說明
    EMI/EMC Shielding Materials
    EASY SHIELD GASKET

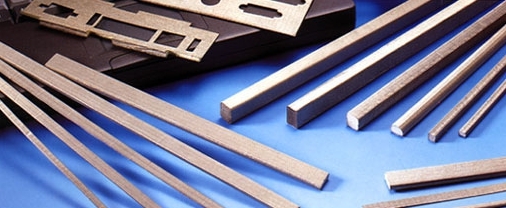

    Gaskets can be made in a wide range of shapes and sizes.
    UL導電泡棉
    EMI/EMC Shielding Materials
    EASY SHIELD GASKET
    Gaskets can be made in a wide range of shapes and sizes.
    EMI/EMC Shielding Materials
    EASY SHIELD GASKET
    Gaskets can be made in a wide range of shapes and sizes.     商品說明:

    商品規格:
    條碼:
    ‧型號:
    商品價格 NT$未定
    商品規格
    商品數量
    EASY SHIELD EMI SERIES :
    Materials Selection
    Metal type Fabric type Adhesive
    Nickel/Copper
    Carbon/Silver
    Nickel/Silver    		 Taffeta
    Plain Weave    		 Conductive
    Non-Conductive

    Test Result
    Test Method Surface Resistance 0.05Ω～0.08Ω/□
    Gasket at 6mm x 10mm Average 115 dB>
    Shielding Effectiveness


    Abrasion Resistance (ASTM D3886)
    Service Temp.
    Tolerance of Gasket
    Compression Set
    Compression Load Defection    		 from 20 Mhz to 10 Ghz
    Conductive Fabric Average 80 dB
    from 30 Mhz to 1 Ghz
    ＞1,000,000 Wear Cycles
    up to 70℃
    W x H +0.5mm
    ≦ 10 %
    2Kg

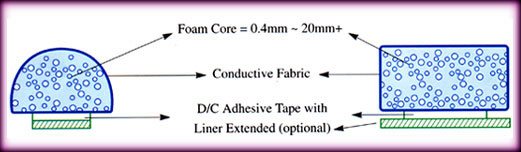

    RECTANGLE－B
    t Minimum : 1mm Width Minimum : 3mm
    Height Maximum : 10mm Width Maximum : 15mm
    D SHAPE－C
    Height Minimum : 2mm Width Minimum : 2mm
    Height Maximum : 6mm Width Maximum : 9mm
    I/O GASKET
    Height Minimum : 1mm Width Minimum : 3mm
    Height Maximum : 10mm Width Maximum : 15mm
    OTHER SPECIAL SHAPES AND CUSTOM DESIGN ARE AVAILABLE.
    Order Information
    G A △ XX XX
    Gasket Shape Foam Type Width Height
    (Normal Type)
    F A △ XX XX
    Gasket Shape Foam Type Width Height
    (UL 94V-0 Type)
    SQUARE－A
    Height Minimum : 3mm Width Minimum : 3mm
    Height Maximum : 10mm Width Maximum : 10mm
